Nikon

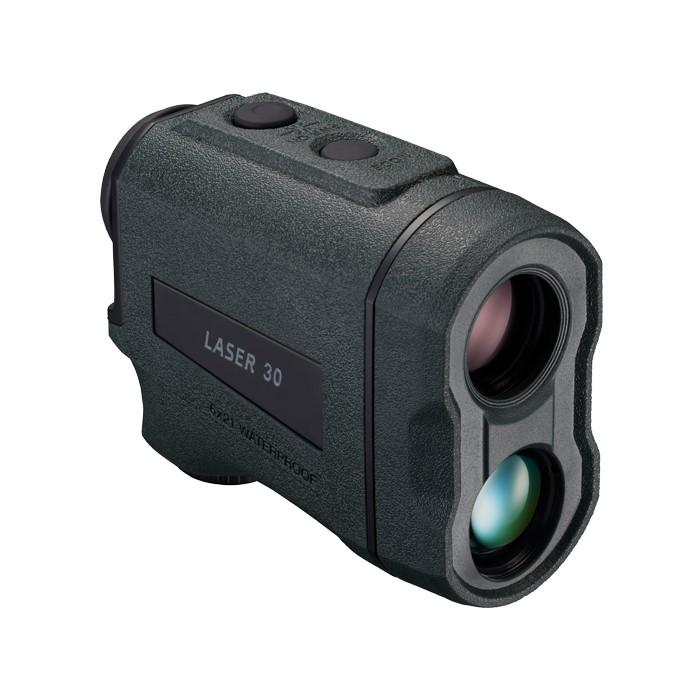

Nikon LASER 30 rangefinder 8-1600 yrds 6x21

Product #: NK16753 UPC: 018208167531 Mfg Part #: 16753

$349.95

Share:
Overview

When knowing distance is critical to what you do, whether that’s outdoor adventures, forestry, construction, utility work or surveying, you need a rangefinder that’s fast, accurate, and durable. Meet the LASER 30, a multipurpose rangefinder that quickly measures horizontal distance, actual distance and angle and degrees in .1 yard increments up to 1,600 yards in the toughest conditions.

Features:

  • Measurement Range Distance: 8-1,600 yd. (7.3-1,460m)
  • Measurement Range Angle: ±89º
  • Maximum Measurement Distance (Tree): 1,250 yd. (1,140m)
  • Maximum Measurement Distance (Deer): 1,100 yd. (1,000m)
  • Increment Reading Actual Distance: every 0.1m/yd.
  • Increment Reading Horizontal Distance: every 0.1m/yd.
  • Increment Reading Height (upper): every 1m/yd. (100m/yd. and over)
  • Increment Reading Angle: every 0.1°
  • Accuracy (Actual Distance): ±0.50m/yd. (shorter than 700m/yd.)
  • Accuracy (Actual Distance): ±1.00m/yd. (700m/yd. and over, shorter than 1,000m/yd.)
  • Accuracy (Actual Distance): ±1.50m/yd. (1,000m/yd. and over)
  • Magnification: 6x
  • Effective Objective Diameter: 21mm
  • Angular Field of View (Apparent): 7.5°
  • Exit Pupil: 3.5mm
  • Eye Relief: 18.0mm
  • Diopter Adjustment: +/- 4°
  • Power Source: 1 CR2 Lithium Battery (DC 3V)
  • Automatic power shut-off (after approx. 8 sec. unoperated)
  • Size (Length x Width x Height): 3.8 in. (96mm) x 1.7 in. (42mm) x 2.9 in. (74mm)
  • Weight (Without Batteries): 6.2 oz (175g)
  • Operating Temperature: -10 to +50°C (14 to 122°F)
  • Operating Humidity: 80% or less (without dew condensation)
  • Angle Compensation: Yes
  • Durability: Waterproof (up to 1m/3.3 ft. for 10 minutes), Fogproof. Battery chamber is rainproof - JIS/IEC protection class 4 (IPX4) equivalent
  • Battery Life: Approx. 8,500 actuations (at approx. 20°C [68°F])
  • Laser Classification: IEC60825-1: Class 1M/Laser Product
  • FDA/21 CFR Part 1040.10: Class I Laser Product
  • Electromagnetic Compatibility: FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003
  • Environment: RoHS, WEEE
  • Wavelength (nm): 905
  • Pulse Duration (ns): 9.7
  • Output (W): 33.8
  • Beam Divergence (mrad) Vertical: 0.25
  • Beam Divergence (mrad) Horizontal: 1.8
  • Use: Outdoor, Forestry



Specifications
Brand
Nikon
Brand Family
LASER 30
CA Prop 65
Yes
Color
Black
Condition
New
Optics Max Range - Deer yd
1100 yds
Optics Max Range - Reflective yd
1600 yds
Optics Power Magnification
6x
Optics Power Range
6x
Product Class
Rangefinders
Weight
6.2 oz
