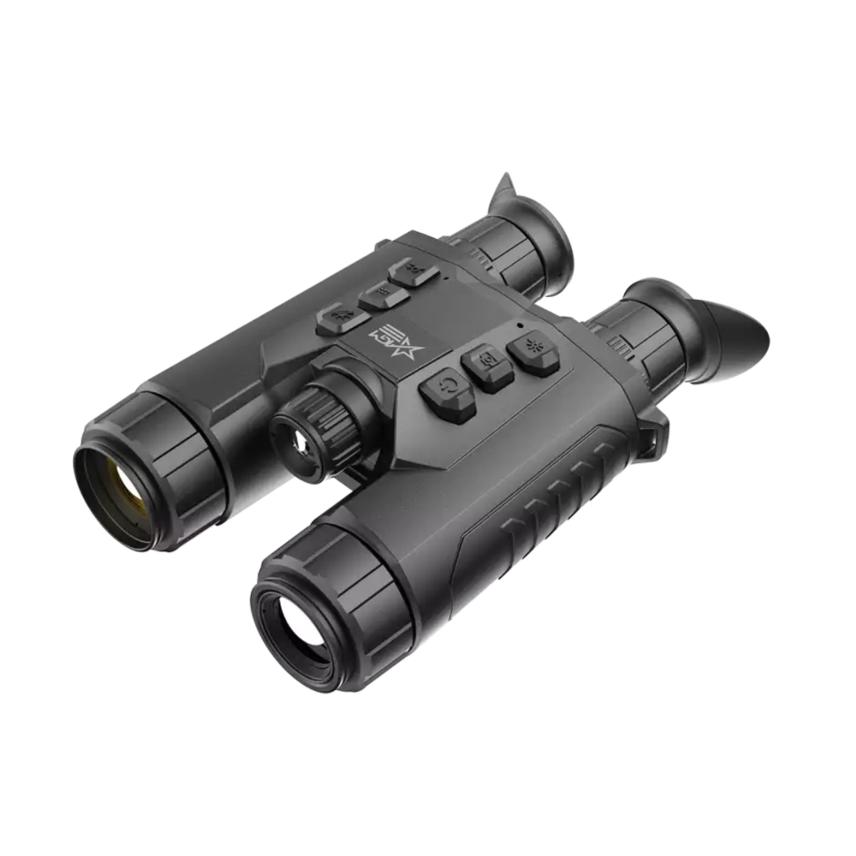

AGM ObservIR LRF 35-640 Thermal Binoculars Black

Product #: AXOBSE35640LRF UPC: 810027775214 Mfg Part #: OBSE35-640-LRF

$3,995.00

Share:
Overview

The AGM ObservIR LRF Thermal & Digital Day/Night binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.
The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 35 mm objective lens with a 1.0 aperture, 3840x2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, picture-in-picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries,
USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger.

  • Dual-spectrum thermal and digital day/night system
  • 12μm high-sensitivity thermal sensor
  • 640x512 thermal resolution
  • 3x – 22x thermal magnification
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 3840×2160 optical resolution
  • Built-in IR illuminator
  • Eye-safe 1,000 m laser rangefinder
  • 1920×1080 resolution, 0.49-inch OLED display
  • Digital Magnetic Compass
  • Built-in GPS module
  • Video/audio recording and snapshot capture
  • Built-in 64 GB EMMC storage
  • Wi-Fi hotspot
  • Standby mode
  • 8-hour continuous operation on a single charge
  • Auto screen-off function to saving energy
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof and dustproof
Specifications
Battery Count
2
Battery Run Time
8 hr
Battery Type
18650 Rechargeable
Brand
AGM
CA Prop 65
Yes
Color
Black
Condition
New
Optics Interpupillary Distance
60-74mm
Optics Length
8.7''
Optics Type
Thermal Binocular
Product Class
Thermal Optics
Thermal Detector Type
12um VOx Uncooled Focal Plane Array
Thermal Diopter Adj
Yes
Thermal Display / Monitor Type
OLED
Thermal Display Resolution
1920 x 1080
Thermal Flat Field Correction
Auto / Manual / External Correction
Thermal FOV Deg
12.5° × 10.0°
Thermal Human Detect Range
1800 yds
Thermal Imaging Palettes
White Black Red Hot Fusion
Thermal Magnification
3-22x
Thermal NETD
<15mK
Thermal Objective Lens (Focal Length)
35mm F/1.0
Thermal Operating Temperature
-20°C to 55°C (-4°F to 131°F)
Thermal Optics Wi-Fi
Yes
Thermal Power Supply
5 VDC/2 A USB Type-C
Thermal Scene Modes
Jungle / Recognition
Thermal Sensor Frame (Refresh) Rate
50 Hz
Thermal Sensor Pixel Interval
12 um
Thermal Sensor Resolution
640 x 512
Thermal Snapshot Capture
Yes
Thermal Standby Mode
Yes
Thermal Storage
64 GB EMMC
Waterproof
IP67
Weight
2 lbs
