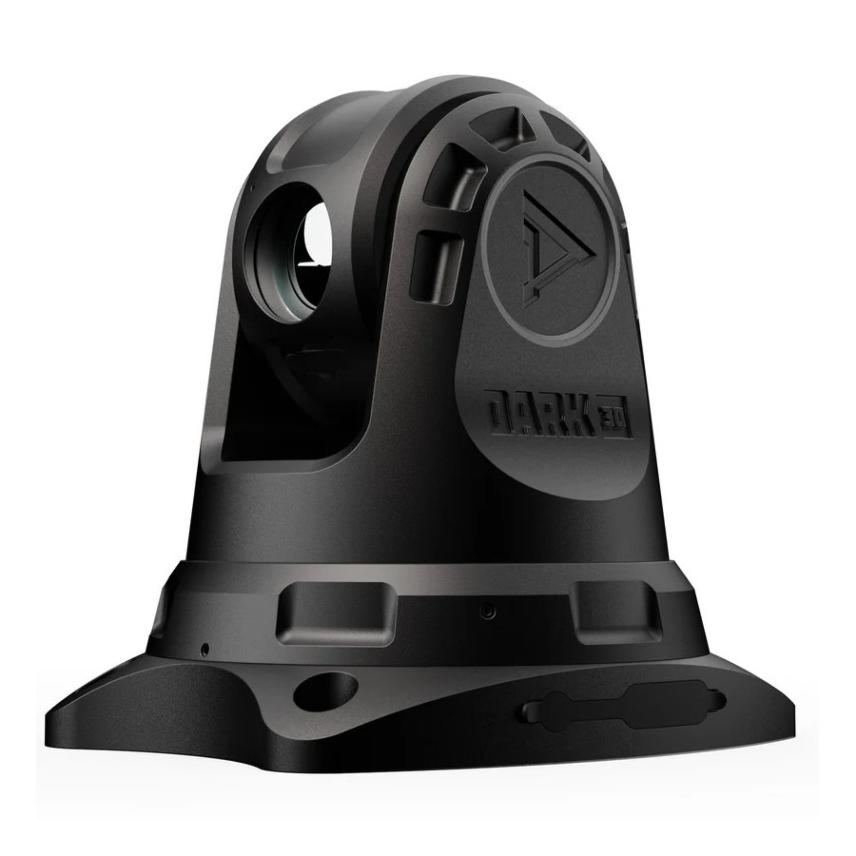

Dark30 Defiance 640 PTZ Thermal Camera Vehicle Mounted

Product #: ISDT27000 UPC: 810119012838 Mfg Part #: DT27000

$6,499.97

Share:
Overview

The Dark 30 Defiance 640 PTZ (DT27000) is an advanced vehicle-mounted thermal camera designed for mobile scouting and wildlife management. It overcomes the limitations of handheld devices and thermal-blocking window glass by mounting directly to the roof of a vehicle, providing a full 360-degree view in total darkness.

Features :

  • High-Resolution Thermal Imaging: Features a 640x480 resolution sensor (<30 mK NETD) and a 32mm Germanium lens for unparalleled image clarity
  • Pan, Tilt, and Zoom (PTZ): Offers infinite 360-degree panning and continuous tilting (straight down to 45 degrees above horizontal), along with 1–8x digital zoom.
  • Long-Range Detection: Capable of detecting heat signatures and targets up to 1,250 yards away.
  • Versatile Mounting: Includes hardware for secure permanent bolting, heavy-duty suction cups, or 100lb pull magnets.
  • App and Display Control: Can be operated using a low-latency 10.1-inch wired LCD screen (powered by the vehicle's 12V outlet) or wirelessly via the Dark 30 mobile app on iOS and Android.
  • Rugged Design: Built for harsh outdoor environments with IP66 water resistance.

Included in BOX :

  • Dark 30 Defiance-640 PTZ 32mm Thermal Camera
  • 1 x 4m long HDMI cable
  • 1 x 4m long DC cable
  • 1 x 1 splits 2 car cigarette adaptor
  • 4 x bolt and nut
  • 4 x Suction Cup feet
  • 4 x Magnetic feet
  • 1 x Remote Control
  • IOS / Android APP
  • 1X Protective hard case
  • 1X Torx Key
  • 1X Nut Driver
  • 1X Suction Cup Mount
  • 1X 11in Flex Arm
  • 1X Bar Clamp
  • 1 X 1/4-20 coupler
  • 1X 10.1in Screen
Specifications
Brand
Dark30
Brand Family
Defiance
CA Prop 65
Yes
Color
Black
Condition
New
Material
Aluminum
Optics App Support
Yes
Optics Class
Thermal Imaging
Optics Mounting System
Vehicle Mounted
Optics Objective
32
Optics Type
Thermal Camera
Product Class
Thermal Optics
Thermal Detector Type
12um
Thermal Digital Zoom
1-8x
Thermal Display / Monitor Type
LCD
Thermal FOV Deg
Horizontal 20° Vertical: 15° Diagonal: 25°
Thermal Human Detect Range
1250 yds
Thermal Imaging Palettes
5
Thermal NETD
<30mK
Thermal Operating Temperature
-4°F to 122°F
Thermal Optics Wi-Fi
Yes
Thermal Power Supply
12V DC
Thermal Sensor Frame (Refresh) Rate
60 Hz
Thermal Sensor Pixel Interval
8 - 14 um
Thermal Sensor Resolution
640 x 480
Warranty
Mfg 5 Year
Waterproof
IP66
Weight
111 oz
