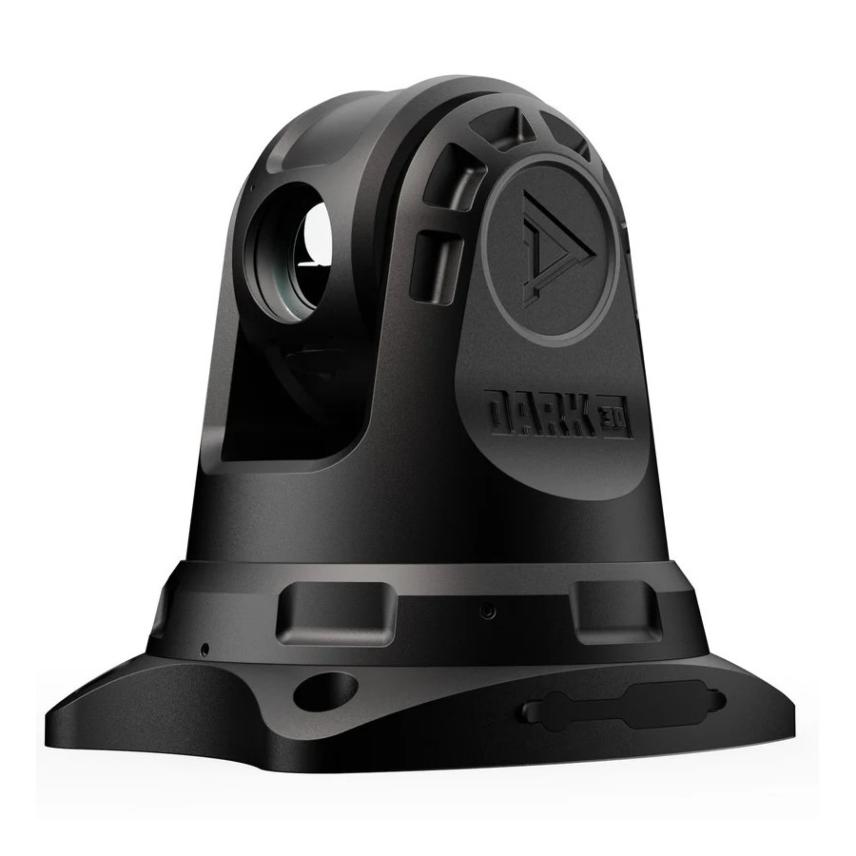

Dark30 Defiance LS 384 PTZ Thermal Camera Vehicle Mounted

Product #: ISDT27001 UPC: 810119012814 Mfg Part #: DT27001

$3,499.97

Share:
Overview

The Dark30 Defiance LS 384 PTZ is a rugged, vehicle-mounted thermal camera designed for trucks and UTVs. Featuring a 384x288 thermal sensor, 360-degree endless panning, and versatile mounting options, it allows users to safely track predators, monitor livestock, and patrol perimeters from inside the vehicle.

Features :

  • Imaging: Equipped with a 384x288 resolution thermal sensor (<40 mK NETD) for exceptional clarity in pitch darkness, fog, and dense brush.
  • PTZ Control: Infinite 360-degree panning and variable speed remote control for dynamic, sweeping coverage.
  • Detection Range: Capable of detecting heat signatures up to 1,250 yards away.
  • Versatile Mounting: Can be easily attached using heavy-duty 100lb magnets, suction cups for temporary placement, or bolts for a permanent installation.
  • Power & Durability: Powered directly by the vehicle’s 12V DC system and features a rugged, water-resistant housing
  • In-Cabin Viewing: Includes a 10.1-inch, low-latency HDMI viewing screen that mounts inside the cabin for real-time observation.
  • App Integration: Supports control via the Dark 30 mobile application.
  • Smart Functions: Includes a convenient "Sleep Mode" and "Return to Home" function to easily reset the camera’s default position
  • The LS 384 is widely utilized by ranchers, hunters, and border/perimeter defense agencies. It serves as an excellent mid-range option for spotting hogs, coyotes, or livestock without relying on headlights or visible-light cameras.

Included in BOX :

  • Dark 30 Defiance-640 PTZ 32mm Thermal Camera
  • 1 x 4m long HDMI cable
  • 1 x 4m long DC cable
  • 1 x 1 splits 2 car cigarette adaptor
  • 4 x bolt and nut
  • 4 x Suction Cup feet
  • 4 x Magnetic feet
  • 1 x Remote Control
  • IOS / Android APP
  • 1X Protective hard case
  • 1X Torx Key
  • 1X Nut Driver
  • 1X Suction Cup Mount
  • 1X 11in Flex Arm
  • 1X Bar Clamp
  • 1 X 1/4-20 coupler
  • 1X 10.1in Screen
Specifications
Brand
Dark30
Brand Family
Defiance
CA Prop 65
Yes
Color
Black
Condition
New
Material
Aluminum
Optics App Support
Yes
Optics Class
Thermal Imaging
Optics Mounting System
Vehicle Mounted
Optics Objective
32
Optics Type
Thermal Camera
Product Class
Thermal Optics
Thermal Detector Type
12um
Thermal Digital Zoom
1-8x
Thermal Display / Monitor Type
LCD
Thermal Display Resolution
1920 x 1080
Thermal FOV Deg
Horizontal 20° Vertical: 15° Diagonal: 25°
Thermal Human Detect Range
1250 yds
Thermal Imaging Palettes
5
Thermal NETD
<40 mk
Thermal Operating Temperature
-4°F to 122°F
Thermal Optics Wi-Fi
Yes
Thermal Power Supply
12V DC
Thermal Sensor Frame (Refresh) Rate
60 Hz
Thermal Sensor Pixel Interval
8 - 14 um
Thermal Sensor Resolution
384 x 288
Thermal Storage
TF card slot / 2 HDMI ports / 2 DC ports
Warranty
Mfg 5 Year
Waterproof
IP66
Weight
111 oz
