In Stock

ATN

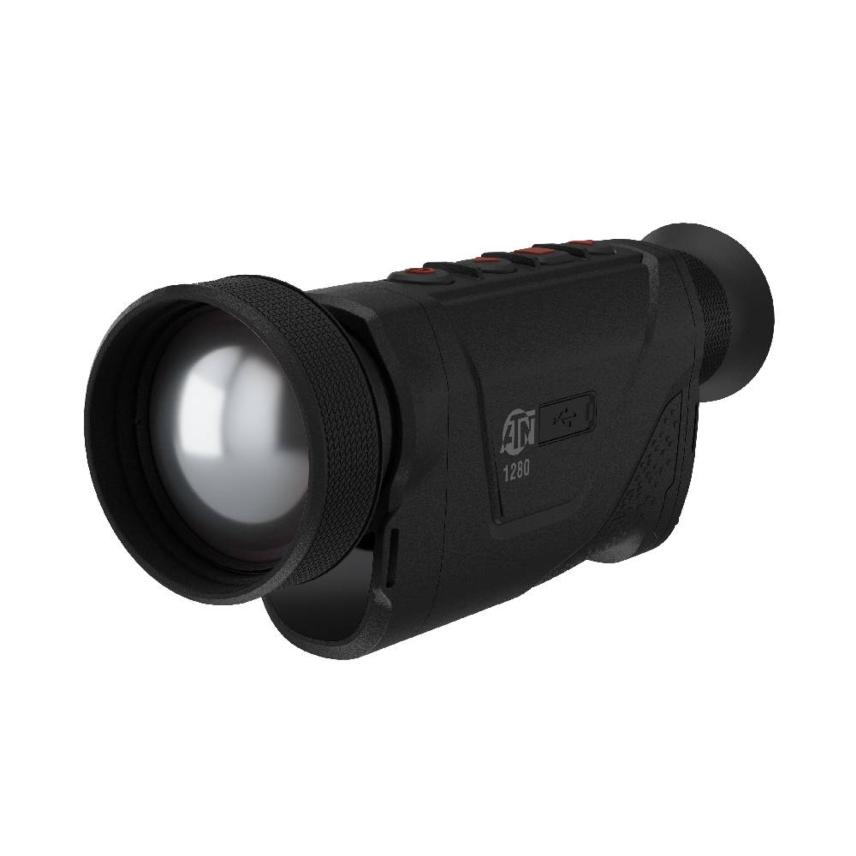

ATN BlazeHunter XD Thermal Monocular 2–16x 1280×1024 Built-in LRF

Product #: ASTIMNBLHXD50LRF UPC: 658175797906 Mfg Part #: TIMNBLHXD50LRF

$4,995.00

Share:
Overview

Experience the next evolution in thermal imaging with the ATN BlazeHunter XD LRF, a high-performance dual-use thermal monocular designed for hunters, professionals, and tactical operators who demand clarity, precision, and dependability in any environment.

At its core is ATN's 6th Generation Thermal Engine, our most advanced system ever. The BlazeHunter XD LRF features a 1280x1024 HD thermal sensor with 12 µm pixel pitch and ≤15 mK NETD ultra-sensitivity, delivering over a million more pixels than standard thermal optics. Every image is sharper, smoother, and more detailed, revealing the faintest heat signatures through fog, smoke, and darkness.

To enhance performance even further, ATN SharpIR, our proprietary AI-driven imaging technology, refines detail in real time by dynamically sharpening edges and boosting contrast. Whether scanning dense timber, searching open terrain, or monitoring in low-visibility environments, you get precise heat definition when it matters most.

The 0.49-inch 1920x1080 OLED display provides rich contrast and lifelike visuals that reduce eye strain during long sessions. With a built-in Laser Rangefinder, hunters, SAR teams, and law-enforcement professionals can instantly measure distances for accurate targeting and situational awareness.

Capture every moment with onboard video and audio recording, and share footage instantly via built-in Wi-Fi and the ATN Connect 6 app. Six selectable color palettes let you tailor your thermal view to any terrain or lighting condition, while the extended-life dual rechargeable battery system provides 10 hours of continuous operation in the field.

Lightweight, rugged, and ready for action, the BlazeHunter XD LRF delivers unmatched versatility for hunting, surveillance, and tactical response, making it the ultimate tool for those who see beyond the visible.

Specifications
Battery Count
2
Battery Run Time
5+ hrs per battery / 10+ hrs total
Battery Type
18650 Rechargeable
Brand
ATN
Brand Family
BlazeHunter
CA Prop 65
Yes
Color
Black
Condition
New
Material
Magnesium Alloy
Optics Class
Thermal Imaging
Optics Type
Thermal Monocular
Product Class
Thermal Optics
Thermal Detector Type
12um VOx Uncooled Focal Plane Array
Thermal Digital Zoom
1x 2x 4x 8x
Thermal Diopter Adj
-5/+5
Thermal Display / Monitor Type
0.49'' OLED
Thermal Display Resolution
1920 x 1080
Thermal Eye Relief
50mm
Thermal FOV Deg
17.46° x 14.01°
Thermal Human Detect Range
3400 yds
Thermal Imaging Palettes
White Black Hot Ironbow High Red Green Hot Sepia
Thermal Magnification
2-16x
Thermal NETD
<15mK
Thermal Operating Temperature
-30°C to 55°C (-22°F to 131°F)
Thermal Optics Wi-Fi
Yes
Thermal Power Supply
5 VDC/2 A USB Type-C interface
Thermal Rangefinder
1000m
Thermal Sensor Frame (Refresh) Rate
50 Hz
Thermal Sensor Resolution
1280 x 1024
Weight
1.1 lb
