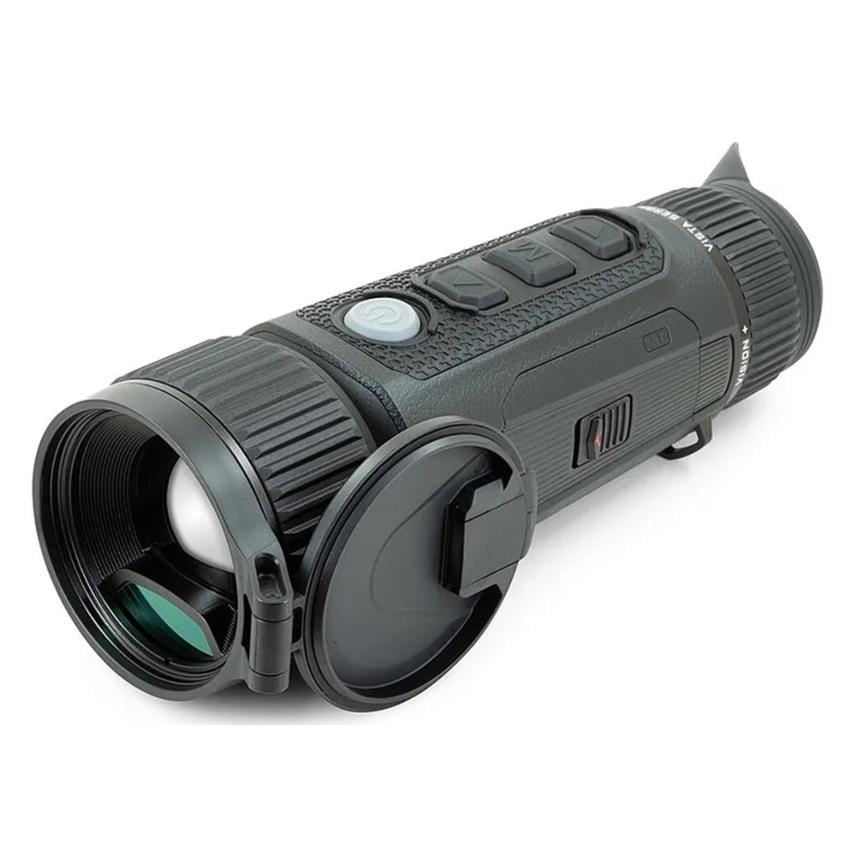

Nocpix Vista H35R Rangefinding Thermal Monocular 640x512 Black

Product #: JRVISTAH35R UPC: 850048751378 Mfg Part #: VISTA-H35R

$2,699.00

Share:
Overview

The Nocpix VISTA handheld thermal monocular features an advanced f/0.9 germanium objective lens, offering exceptional clarity and detail. The original 50 mm model (ideal for long-distance observation) is now joined by a new 35 mm variant with a 3× native magnification, ideal for close and medium range hunting distances. Equipped with a high-resolution 640×512 thermal sensor and an impressive ≤15 mK NETD sensitivity rating, this ergonomic monocular delivers crystal-clear images with remarkable detail and contrast.

The lens-integrated laser rangefinder enhances its functionality, boasting a maximum detection range of 1,200 yards with a remarkable sensitivity of ±1 yard. Its ergonomic design ensures comfortable handling, while the intuitive interface allows for seamless operation. VISTA models include electronic image stabilization for a smooth, sharp picture on the 2560×2560 round AMOLED display.

Whether you’re scanning for coyotes or conducting night-time surveillance, this is your go-to tool for unparalleled thermal imaging performance.

  • A lens-integrated laser rangefinder can fire on command or continuously when scanning.
  • One-of-a-kind circular ultra-high resolution 1.03-inch 2560×2560 AMOLED display.
  • Onboard photo, video, and audio recording.
  • Large, ergonomic objective focus dial for precise control.
  • New Nocpix IBP-7 removable battery pack with direct USB-C charging.
  • 1/4-20 thread socket for quick-plate or tripod mounting.



Specifications
Battery Count
1
Battery Run Time
5.5 hr
Battery Type
IBP-7 Li-ion Battery Pack
Brand
Nocpix
Brand Family
Vista
CA Prop 65
Yes
Color
Black
Condition
New
Country of Origin
China
Material
Polymer with Rubber Overmolding
Microphone
Yes
Optics Activation Modes
Manual On/Off
Optics Class
Thermal Imaging
Optics Objective
35
Optics Type
Thermal Monocular
Product Class
Thermal Optics
Thermal Aperture
F0.9
Thermal Core
NOCPIX 640
Thermal Digital Zoom
8x
Thermal Diopter Adj
-4/+6
Thermal Display / Monitor Type
1.03'' Large-format AMOLED
Thermal Display Resolution
2560 x 2560
Thermal Eye Relief
25mm
Thermal FOV Deg
12.5° × 10.0°
Thermal Human Detect Range
1750 yds
Thermal Imaging Palettes
White Black Red Hot Color Violet Crimson Viridian
Thermal Magnification
3x
Thermal NETD
<15mK
Thermal Objective Lens (Focal Length)
35mm F/0.9
Thermal Operating Temperature
-4°F to 122°F
Thermal Optics Wi-Fi
Yes
Thermal PIP Mode
Yes
Thermal Power Supply
Charging USB Type C
Thermal Rangefinder
Integrated 1200 yd LRF
Thermal Recording Type
On-Board Video Photo and Audio
Thermal Reticle
Multiple Colors and Patterns
Thermal Sensor Frame (Refresh) Rate
60 Hz
Thermal Sensor Pixel Interval
12 um
Thermal Sensor Resolution
640 x 512
Thermal Standby Mode
<10s Instant from Standby
Thermal Storage
64 GB
Warranty
Mfg 5 Year Limited
Waterproof
IP67
Weight
22.58 oz
