Sig Sauer

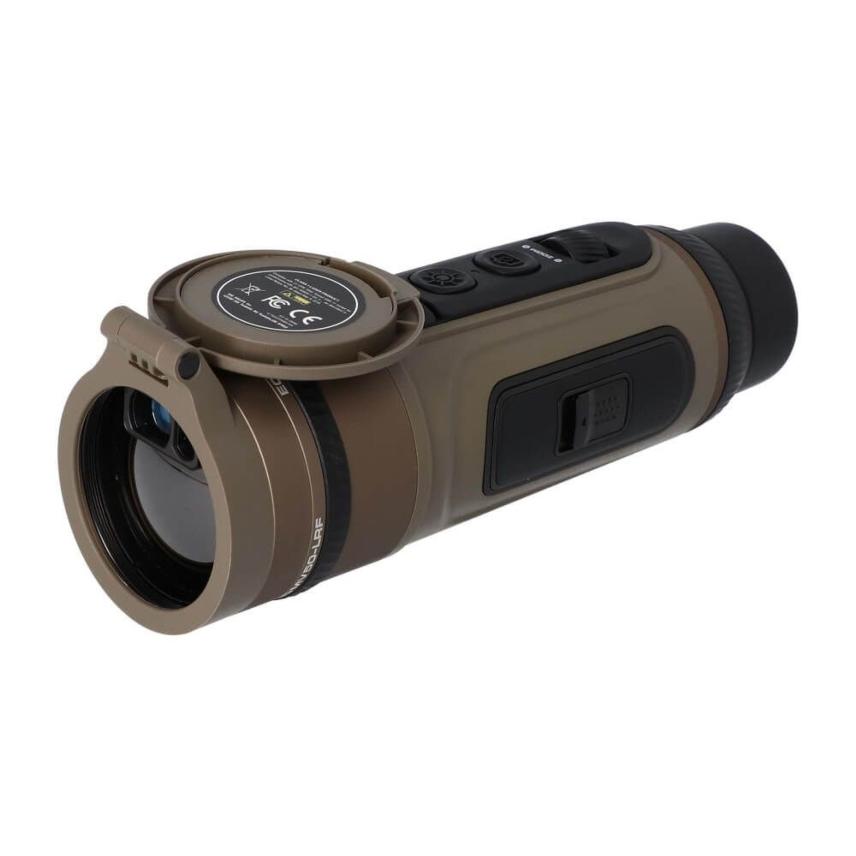

Sig Sauer ECHO MV50-LRF Thermal Monocular 640x512 Core 3-24x50mm LRF BDX 2.0

Product #: XISOEC42310 UPC: 798681704187 Mfg Part #: SOEC42310

$3,299.99

Share:
Overview

Leveraging years of experience creating the industry’s most innovative and rugged technologies, SIG SAUER’s new ECHO MV50-LRF is a compact thermal monocular packed with industry-leading features and fully backed by SIG SAUER’s unrivaled Infinite Guarantee™.

The ECHO MV50-LRF is powered by an LWIR 640x512 VGA, 12um 50Hz thermal core with <20mK sensitivity that allows you to identify targets in total darkness with 8 selectable color palettes. Compatible with SIG SAUER’s BDX 2.0 Mobile App, the ECHO MV50-LRF can capture both photo and video that can be viewed or shared in real-time via BDX 2.0.

With an integrated 1000-y laser rangefinder, the ECHO MV50-LRF can deliver custom ballistic solutions driven by Applied Ballistics® Ultralight. When paired with a compatible ECHO optic, the MV50-LRF communicates immediate holdover solutions through the disturbed reticle of your optic.

Boasting one of the longest runtimes in the industry, the ECHO MV50-LRF is capable of drawing power from an internal reserve cell, in addition to a removable 18500 lithium-ion battery. The device ships with (2) 18500 batteries to ensure that you have all the power you need for long nights afield.

  • Integrated 1000y Laser Rangefinder and Applied Ballistics® Ultralight
  • 3-24x Digital Zoom
  • LWIR 640x512 VGA 12um 50Hz Thermal Core with <20mK sensitivity
  • Fully Backed by SIG SAUER’s Infinite Guarantee™
  • 8 Selectable Color Palettes
  • Record Photo and Video (With Audio)
  • BDX 2.0 Connectivity
  • Compatible with BDX™-Capable Thermal optics
  • 10-Hour Runtime
  • Includes (2) 18500 Rechargeable Lithium-Ion Batteries
Specifications
Battery Count
2
Battery Run Time
10 hr
Battery Type
Internal and 18500 Replaceable External
Brand
Sig Sauer
Brand Family
Echo
CA Prop 65
Yes
Color
Flat Dark Earth
Condition
New
Country of Origin
Assembled in the USA
Optics Activation Modes
Motion Activation and Auto Off
Optics App Support
Sig BDX Mobile App (iOS and Android)
Optics Class
Thermal Imaging
Optics Length
7.6''
Optics Type
Thermal Monocular
Product Class
Thermal Optics
Thermal FOV Deg
8.7°
Thermal Imaging Palettes
8 Color
Thermal Magnification
3-24x
Thermal PIP Mode
Yes
Thermal Rangefinder
Integrated 1000 yard laser rangefinder, and Applied Ballistics Ultralight
Thermal Sensor Frame (Refresh) Rate
50 Hz
Thermal Sensor Pixel Interval
12 um
Thermal Sensor Resolution
640 x 512
Waterproof
IP67
